• When an automation label fails, the root cause is often the label design, not the applicator machine that applied it.
• Applicator machines can confirm motion and contact, but they cannot verify bond quality, material behavior, or long-term performance of an automation label.
• Reliable automation labels must be engineered as part of the overall system, accounting for machine constraints, environmental conditions, and production timing.
• Small material and construction details in an automation label can have outsized impacts on line stability, uptime, and product quality.
• Many automation label problems only appear downstream, long after a label has been successfully applied and the machine has moved on.

Hidden factors in automation label design

Often, when something goes wrong with automating labeling, the applicator machine isn’t the problem. Label construction and materials are.

An automation label requires materials and construction that stay within tight tolerances while meeting the broader needs of the production process, like environmental durability, sterility or cleanroom compatibility.

At CleanMark, our technical services team looks at five hidden factors of labels that ensure our automation label solutions work reliably within your unique system.

• Adhesive performance
• Liner construction
• Line speed
• Film selection
• Roll construction

These same five aspects of your label construction and materials are a great place to start troubleshooting if your automation label isn’t performing as expected.

Automation label factor 1: adhesive performance

In an automated environment, your machine can confirm that a label was dispensed and is no longer present on the liner, but it cannot confirm whether the adhesive achieved a durable bond. That gap between “applied” and “successfully bonded” is where many automation failures originate.

To close the gap, your label adhesive needs to be designed with the limitations of your applicator machine and other environmental stressors in mind.

Low-surface-energy (LSE) substrates

Many medical, industrial, and packaging applications involve low surface energy (LSE) materials. These surfaces resist wetting, which means adhesives do not naturally spread and anchor the way they do on higher-energy substrates.

In automation, this becomes especially critical for the following reasons:

• The contact window may be short.
• Pressure may be limited by the applicator design.
• There may be no secondary manual smoothing step.

If the adhesive is not designed for LSE conditions, the applicator machine may register a successful application, when in reality, you’ll experience symptoms of poor adhesion down the line:

• Edge lifting
• Incomplete wet-out
• Reduced ultimate bond strength

Required application pressure

Pressure-sensitive adhesives rely on pressure to flow into the microscopic texture of a surface. In automated situations, that pressure is controlled by:

• The applicator method (wipe, tamp, blow, or combination)
• Pad design and dwell time
• Line speed

If the pressure applied by the applicator machine is lower than what the adhesive requires, bonding can be compromised. And, unlike with manual-application labels, an automation label does not allow for intuitive adjustments in pressure or technique. The adhesive must be engineered to perform within the mechanical constraints of the applicator.

Required bonding time

Some adhesives exhibit strong initial tack but require time to reach ultimate bond strength. This can be a problem in label automation systems if labels don’t have sufficient time to set:

• The product may move immediately after labeling.
• Labels may be subjected to handling or packaging shortly after application.
• There may be limited dwell time before downstream processes begin.

If bonding time is not accounted for in the system design, an automation label can appear secure at application but fail later in the workflow.

Moisture and wet-out behavior

In many automated environments (particularly post-sterilization, cold storage, or shrink-wrapped processes) moisture may be present at the point of application. Residual steam, condensation, or surface dampness can interfere with adhesion.

In these conditions, adhesives have to rise to the challenge of the conditions:

• Wet out even in the presence of moisture
• Displace water on the surface
• Push moisture toward the edges of the label
• Be able to form after application

If these goals aren’t accomplished, moisture can prevent the adhesive from making good contact with the substrate. The end result is the applicator appears to be working successfully, yet the automation label fails to adhere longterm.

Automation label factor 2: Liner construction

Applicator machines are often calibrated based on label presence and placement, but liner performance also has a direct impact on labeling success. It directly affects tension stability, release consistency, and overall line uptime. Poor liner design can introduce failures that look mechanical at first glance but actually originate in material selection and construction.

Release coatings

For a liner to be reliable in an automated environment, its release surface must behave same consistently from the beginning of the roll to the end. Inconsistent release force can cause an automation label to peel too easily in some sections of the roll and stay stuck on the liner in others, leading to unpredictable results at the peel bar. These inconsistencies also directly affect liner tension upstream and label transfer downstream, causing even more problems. And, these problems compound at high line speeds.

Stiffness

As the liner moves through the applicator, it must navigate tight turns, rollers, dancer bars, and other tension-control components. The stiffness of the liner be designed with these physical pathways in mind.

A liner that is too flexible may stretch, wrinkle, or lose tension as it moves through the machine. A liner that is too stiff may have trouble bending around rollers, track incorrectly, or create tension spikes. In either case, inappropriate stiffness can destabilize label application causing both at-the-applicator issues and downstream quality problems.

Stretch

Stretch is a big factor in how well a liner maintains consistent tension. If a liner stretches drastically under load, label spacing and registration can shift as the liner moves through the machine. This can affect the timing of label presentation at the peel bar and disrupt sensor readings. Stretch-related issues cause the most issues in labeling systems that rely on precise timing between liner movement and product movement. In those set-ups,  the machine assumes the liner will behave predictably under shear and tension. When it doesn’t, mistakes happen.

Die cuts

The precision of an automation label’s die-cut also directly affects how the liner and label separate under tension. If die cuts are too shallow, the label may not release cleanly from the liner, increasing resistance at the peel point and placing additional shear stress on the liner. If die cuts are too deep, adhesive can migrate into the cut edge, making labels harder to peel and increasing liner breakage. Or, the liner can tear, causing pad peel issues and inconsistent performance. Errors from these scenarios, like slippage, misfeeds, or line-down events, are often misattributed to applicator calibration when they’re really a label design issue.

Material strength

The strength of your liner material affects how well it withstands shear forces as it is pulled, redirected, and rewound inside the machine. Liners with low strength may tear, deform, or fail under load, particularly at high speeds or during rapid acceleration and deceleration. Differences between paper and synthetic liners also have an impact on how the liner responds to stressors, like shear and tension.

Automation label factor 3: Line speed

Line speed determines how long a label exists in an intermediate state during production. Labels often pause after printing, after peeling, and before application, for example. If a label manufacturer fails to consider these pauses during label construction, the result is often an unreliable labeling system.

Time between prints

How quickly a printed label moves from the print engine to the point of application depends on line speed. In many automated systems, labels are printed immediately before being peeled and transferred. When the time between printing and application is short, the printed image must be stable almost immediately, no small task.

This introduces two critical considerations:

Ink choice

Ink must set without smearing, transfering, or distorting as the label advances through the machine. At fast line speeds, there may be very little time for ink to dry, set, or bond to the label surface before the label moves on to the next process.

Label surface receptivity

The other key to print stability is the ink receptivity of the label facestock and top coatings. If the surface doesn’t allow rapid ink setting or proper ribbon transfer, print quality will suffer as line speed increases.

Time labels sit exposed on tamp pads

In many automated systems, labels are peeled from the liner and held on a tamp pad with the adhesive exposed when the system pauses (usually for the reasons mentioned above). During those pauses,  label construction must remain stable:

• Adhesives must maintain function
• Labels must retain shape and edge integrity
• Release behavior must remain consistent

If automation label materials aren’t designed for these conditions, problems arise. Poor transfer, misalignment, or post-application adhesive failure are the most common.

Automation label factor 4: Film selection

Film selection plays a central role in how reliably labels move through the label applicator, transfer to the product, and adhere after application. When film properties are not designed in sync with the applicator and environment, issues emerge (even when adhesive, liner, and machine settings look fine).

Film stiffness vs. flexibility

The balance between stiffness and flexibility determines how an automation label performs as it is peeled from the liner and applied to the product.

Release from the liner

A film that’s too stiff won’t bend properly at the peel bar, making it harder for the label to separate cleanly from the liner. This can increase resistance at the peel point and affect liner tension. A film that is too flexible may collapse or fold as it releases, particularly at higher line speeds.

Conformance to the product

Most products aren’t flat. So, film must conform to whichever shape needs to be labeled. Flexible films are generally better suited for curved, irregular, or small-diameter surfaces. Stiffer films often  struggle to adhere to these more challenging shapes, increasing the risk of edge lifting.

Interaction with tamp pads and wipe mechanisms

In tamp, wipe, and hybrid application methods, film must transfer reliably from the liner to a pad or directly to the product. Stiffer films struggle to seat evenly on tamp pads or don’t make full contact during application. More flexible films typically transfer better but note that they’ll  still need  enough rigidity to avoid wrinkling or distortion.

Compatibility with printing systems

Printing technology must also be taken into account when selecting film.

Direct thermal, thermal transfer, ink jet, or laser

Choosing the right film for the printing method (direct thermal, thermal transfer, inkjet, or laser) used on the line ensures that  printed data stabilizes quickly and remains legible. Incompatible films often result in poor print quality, incomplete transfer, or illegibility.

Coatings and surface treatments

Films often rely on top coatings to accept ink or ribbon transfer. Time, durability, and appearance are all factors in which to choose. At higher line speeds, time becomes one of top priorities.

Automation label factor #5: Roll construction

Even if you get the first four factors right, poorly thought-out roll construction can cause everything to fail: from  feeding issues and tension instability to setup delays. Labeling machines assume a predictable roll format, so issues in roll construction often show up as mechanical problems. But in reality, the problem often  lies in how the labels were wound and prepared.

How roll format affects machine feeding

Roll format drives how the liner unwinds, how smoothly labels arrive at the peel bar, and how reliably the liner rewinds after the labels have peeled off. If the roll doesn’t  unwind evenly, the feed rates can fluctuate, disrupting timing and placement, even when machine settings remain stable.

Tension consistency throughout the run

Consistent tension depends on uniform roll construction from the outer wraps to the core. Changes in winding, roll density, or label alignment can cause changes in tension as the roll diameter decreases. These shifts affect the labels’ interaction with rollers, dancer bars, and rewind systems, upping the risk of slippage, misfeeds, or registration errors.

Setup efficiency and changeovers

Roll construction also has a direct impact on how quickly and reliably an applicator machine can be set up or reloaded. Well designed rolls allow operators to thread liners smoothly through the machine without labels peeling accidentally and catching on internal components. On the other hand, poorly designed roll construction increases setup time and raises the likelihood of errors during roll changes, particularly on high-speed or high-throughput lines.

Core compatibility and leader length

Applicators are designed to accept specific core sizes and formats. If the roll core is not exactly aligned with the applicator, mis-matched mounting can cause uneven unwinding or vibration during operation. Leader length (the section of liner without labels)  is also important. It plays a key role during setup, allowing operators to thread the liner without fear of labels sticking to internal surfaces.

Label spacing and consistent sizing

Uniform label spacing and consistent label dimensions across the entire roll are also essential for accurate sensor readings and timing. Inconsistencies in spacing or size often cause sensors to misread label position, disrupting the synchronization between liner movement and product flow. These issues often intensify at higher line speeds, where timing tolerances are narrow.

Quick reference to automation label design factors

The level of technical detail necessary to design a high-performance automation label is demanding. We’ve consolidated the high points into this handy reference chart.

Or, better yet, schedule a consultation with one of our label experts and let us design a custom label for your automated system that checks all of the design boxes.

The post The automation label: materials and construction matter appeared first on CleanMarkLabels.

• A key mistake when automating is failing to look at your automated label applicator and labels as two parts of a whole.
• If you don’t address your automated label applicator and labels at the same time, you risk false label success, poor adhesive performance, and mechanics mismatch.
•  Standard labels provided by applicator manufacturers focus on point-of-application success, not long term optimization and reliability.
• Including a label expert in the conversation early helps speed implementation, reduce risk, and optimize performance.
• Whether you’re just starting to consider an automated label applicator or have already implemented an automated process, CleanMark can help optimize your labeling solution.

Labels are a key component of your automated label applicator

Deciding to integrate an automated label applicator into your production process is a big decision. Done right, it can skyrocket your efficiency and revenue. But, over the years, we’ve seen some common mistakes that turn what should be in improvement into a costly mistake. The top misstep? Failing to look at your automated label applicator and labels as two parts of a whole.

#1 mistake: early focus solely on the automated label applicator

In many automation projects, we see early focus being placed almost entirely on the equipment. Components like applicator platforms, automation vendors, line layouts, and target speeds are the main topic of conversation.

We understand how this happens. Equipment decisions feel foundational.

But what’s often overlooked is that label behavior and equipment behavior are inseparable once the line is running. When labels are treated as a downstream input (something to fit into an already-defined system) small mismatches can surface later as intermittent failures, speed limitations, or validation complications.

What goes wrong when you separate label decisions from automated label applicator selection

We’re all familiar with how wrong things can go if you don’t choose the right external components to feed into your machine. Everyone knows not to put diesel in a car, for example, unless you want a dead engine.

Putting the wrong label into your automated label applicator might not immediately blow the machine up, but the negative consequences are just as severe (and sometimes not visible until far down the production line when they’re more costly).

Automated label applicator registers false success

Automated label applicators often detect success only by confirming the label is no longer present after contact. But there’s a lot that can go wrong even if the label leaves the liner.

• Improper adhesive bonding
• Inadequate pressure
• Failure to adhere long term
• Loss of edge integrity

Application method doesn’t match desired adhesive performance

Particularly in high-precision, technical manufacturing environments, labels must adhere to challenging surfaces in extreme environments for an exact period of time, and often need to be removed without residue.

Even if a label initially sticks (and thus registers as success by the automated label applicator), it may not stay stuck in the conditions that follow. Some of the common failures we see:

• High initial tack but low ultimate bond strength
• Insufficient pressure tolerance for low-surface-energy materials
• Adhesives that require more dwell time than the applicator provides

The automated label applicator can’t “see” these mistakes, so they go undetected until they cause problems farther down the line.

Mismatch between label construction and applicator mechanics

Automated label applicators can only do their job when labels fit into extremely specific parameters. Your machine might run perfectly with the sample labels provided by the applicator manufacturer, but then when you run the labels that are actually appropriate for your processes, the applicator fails.

One common factor that comes into play is stiffness/flexibility. If your tamp pads, wipe mechanisms, or peel bars, aren’t calibrated correctly for the label you need to use, problems arise:

• Inconsistent placement
• Poor release from the liner
• Labels stick to applicator components instead of product

What about the labels provided by my automated label applicator manufacturer?

Many automated label applicator manufacturers provide standard labels along with their machines. At first glance, this seems like an easy solution. After all, wouldn’t they know best which labels work with their machines? Yes, but …

Automated label applicator manufacturers are focused on designing labels that make their machines look good. You need labels that work well with your automated label applicator AND perform optimally and reliably throughout your unique processes, no matter how challenging.

What success comes down to is getting the right people into the conversation: experts in applicator machines and experts in label construction. The earlier in the process the better!

Why getting the right people in the room early matters

Proactively getting the right people in the room makes a huge difference in the ultimate performance of your automated label applicator and how fast you’re up and running.

Why? Because it reduces the need for redesign and rework.

When you bring a label expert, like CleanMark, in to collaborate with your internal team and any automated label applicator suppliers you’re considering, it heads off problems before they occur.

Speed implementation

Often, companies limit who’s in the design conversation out of a desire to speed the process. But actually, having the wrong people in the room slows the process down because it increases the need for later trial and error.

If you involve your label provider up front, you can

• Match labels to applicator mechanics
• Align labels to sensor requirements
• Increase reliability at full line speed
• Reduce rework from post-installation problems
• Ensure full-process label durability

Reduce risk

Label failure brings a number of risks, from compliance failure to line downtime  and even patient harm, all of which carry financial consequences for your company.

When your label and applicator experts work together to optimize your automation system, you reduce

• Line-down events and rework
• Label misapplication
• Recalls
• Regulatory fines
• Legal liability

Optimize performance

An experienced label provider understands how to optimize labels for a broad variety of automated label applicators and how to ensure exceptional performance after initial application, from legibility to chemical resistance to shipping abrasion durability.

• Reliable adhesion
• Precise application
• Environmental durability
• Cleanroom and/or aseptic compatibility
• Printer compatibility
• Residue-free removal
• High-resolution tracking elements

The automated label applicator + label design process in real life

Understanding conceptually why it’s important to approach automated label applicator design with labels in mind is one thing, but the impact isn’t really clear until you see a real-world scenario.

Context

A medical device manufacturer wants to apply labels automatically post-sterilization to minimize human intervention while maintaining consistent placement and performance.

Challenge

At the point of label application, the devices may retain residual heat, steam, moisture, or cleaning liquids from the autoclave process that can cause poor adhesion or edge lifting, and direct contact between applicator components and the product may introduce contamination or particulate concerns in a controlled environment.

Solution

By evaluating both label and application needs early on, the optimal combination of adhesive, liner construction, die-cut parameters, and automated application method can be chosen. Adhesives can be selected to wet out in the presence of moisture and push water toward the edges of the label while still forming a bond. At the same time, the applicator can be selected or configured to minimize contact, reduce particulate risk, and operate within environmental constraints, while the label is designed to release cleanly from the liner and transfer consistently under the available pressure and timing conditions.

Results

With the label and applicator designed together from the outset, the automated labeling process functions as a single integrated system. Labels release predictably from the liner, transfer reliably through the applicator, and bond effectively to the product despite residual heat, moisture, and environmental constraints. The risk of line downtime, inconsistent application, and post-application label failure is reduced, and performance is optimized without relying on extensive trial-and-error adjustments after installation. And, early involvement of a label expert ensures that critical variables the machine cannot detect (such as adhesive performance, liner behavior, and environmental interaction) are addressed before they become production or quality issues.

Where to go from here

Even if you’ve already started the conversation with an automated label applicator supplier, it’s not too late to get a label expert in the room as well! Depending on where you are in the process, here’s how CleanMark can help.

Considering adding an automated label applicator to your process

This is the ideal time to involve CleanMark’s team of label experts. We can discuss key labeling factors like length of adhesion, durability, and cleanroom compatibility that will influence which automated label applicator is right for you, then support you as you choose your machine and build your label automation process.

Already in talks with an automated label applicator provider

If you’ve already identified an automated label applicator that’s appealing to you, bringing CleanMark into the conversation will help  you understand if that particular machine will allow you to meet all of your labeling goals. And, when you finalize your decision, we’ll be ready to work directly with the applicator manufacturer to optimize custom labels for their equipment.

Just purchased an automated label applicator

While we recommend bringing us in earlier than this if possible, we’re also great at evaluating the equipment you’ve purchased and custom designing your labels for optimal performance at application and beyond.

Automated label applicator isn’t performing as well as hoped

It’s never too late to optimize our label performance. If you’re experiencing inconsistent performance from your automated label applicator or label failure down the line, we can work with you to do a full label review. We’ll evaluate options for better aligning your labels with your existing equipment and for label constructions that will meet your downstream goals.

Ready to get started? Our experienced team members are passionate about optimizing your automated labeling solution. Schedule a consultation here.

The post Why your automated label applicator and labels should be designed together appeared first on CleanMarkLabels.

• Automated labeling requires more precision than manually application.
• Labels have to be exactly to spec to work reliably in automated labeling systems without causing downtime, loss, and rework.
• Release and liner behavior, adhesive timing, and label construction all become important factors in automated labeling systems.
• Automated labeling processes and their labels should be designed together.
• Common mistakes like testing with temporary labels, designing labels after the automated process is finalized, or selecting label materials before thinking about your system are all easy to avoid.
• There are five easy steps you can take to successfully design and implement automated labeling.
• The stakes are higher when automated labeling happens in a regulated environment.
• You should seek expert help when designing or implementing an automated labeling process and/or if you’re experiencing intermittent problems with your labels.

Automated labeling requires precision

Humans are amazingly adaptable at tasks,  including putting labels onto surfaces. Our dexterity, our responsiveness to small changes in label size or stickiness or thickness means that we can get most labels to stick to the thing they’re supposed to stick to.

Not so with automated labeling.

Why labels that have worked fail in automated labeling processes

Automated labeling machines are not adaptable. They are designed to repeat a certain action within a certain set of specs reliably and quickly many, many times every day. That means the labels you feed into them have to be exactly the same and exactly aligned to the requirements of your particular machine. And it explains why standard labels that performed fine when applied by hand suddenly fail when fed into an automatic labeling machine.

What suddenly matters in automated labeling

Look at it this way: if you’re applying labels by hand, they’re a consumable. But once you switch to automated labeling, your labels become a mechanical component of the system. That means your labels have to be just as precise and reliable as the other parts of the system if it’s all going to run smoothly.

Release and liner behavior

Unlike the human hand that can pull harder or softer to peel a label off its liner, automated labeling has tight release force tolerances that make liner construction matter far more than it does in manual application settings. Peel angle, speed, liner stiffness, and release consistency all affect whether a label feeds smoothly or begins to chatter, snap, or mis-register.

Adhesive timing

In manual applications, the question is: will this label stick. In automatic labeling, the question becomes: will it stick at this speed, pressure, and dwell time. Initial tack, wet-out timing, temperature, humidity, and any prior sterilization or environmental exposure can change the answer to that question from yes to no in an instant.

Label construction

Small variances in label construction aren’t a stumbling block for manual application, but they are amplified in automated labeling situations. Facestock caliber impacts registration. Curl memory affects edge lift and placement. Die cut consistency affects pick-and-place accuracy.

Automated labeling processes need to be designed in tandem with labels

Achieving automated labeling success isn’t a chicken or egg situation. It’s a chicken AND egg situation. Here at CleanMark, we’ve been helping companies switch to automated labeling (and rework failed attempts at moving to automated labeling) for a lot of years.

The biggest lesson we’ve learned? Successful automated labeling comes from designing and testing your labels and process together.

Since labels are an integral mechanical component of any automated labeling system, it makes sense that you’d run into problems if you design without them in mind. Applicators, placement methods, line speeds, and container geometry are all affected by and affect label construction and performance.

Also, most companies don’t have an automated labeling expert in-house when they first decide to automate. Bringing on a strong label partner, like CleanMark, early on means you have a partner to advise you on common missteps and short-cuts to success.

Common automated labeling mistakes

Speaking of those common missteps, here are a few we see often that lead to delays, rework and unexpected downtime. But, you can easily dodge them if you know what to avoid.

Selecting label material before your automated labeling process is fully designed

Our label design team carefully chooses every component of your label to conform to the requirements of your automated labeling process. If you don’t know what that process is yet, then you’re choosing label materials blindly, which never leads to a good result.

Validating your automated labeling system using surrogate or temporary labels

Remember when we said automated labeling requires precision? If you test using surrogate or temporary labels, you don’t know for sure that your permanent labels will meet the tight tolerances required by automated labeling systems. If it turns out they don’t, then you’re stuck reworking either the labels or your system.

Testing at bench conditions rather than production speeds

As line speed increases, your release window shrinks, which challenges your automated label system much more. Testing at production speed lets you know for sure if your labels can print, release, and adhere consistently as they’ll need to day in and day out during regular manufacturing.

Assuming material approval equals system readiness

There’s a reason we do lab testing, environmental testing, and then in-situ testing with our customers. It’s because the real world is always just a little different than artificially constructed testing environments. Finding the right material is a big step toward success, but you can’t know your system is truly ready until your label has successfully run through a production speed test in your facility.

The right way to automate labeling

We’ve called out the ways companies get automated labeling wrong, but what steps do you need to take to get it right? Follow these high-level steps, and you’ll reduce the risk of a new system and be on your way to efficiency-boosting, reliable automated labeling.

1. Understand your goals — What do you need your automated labeling system to do? What does success look like? This can be very basic, but orienting yourself early on leads to quicker design and implementation.
2. Involve a label expert early — Finding a label partner experienced with label construction and automated labeling process helps avoid mistakes (like those above) and lets you step away from the technical details to focus more on your larger business goals.
3. Design your labels and automated labeling system together — When you take into account the strengths and inherent limitations of all of your process components, including labels, during the design phase, you’ll end up with an optimized solution and fewer surprises.
4. Consider all label components — Just as your automated labeling is a system, so is each individual label. Make sure your label partner has an experienced material science team and access to the latest adhesives, facestocks, liners, and coatings to ensure you get the highest-functioning label possible.
5. Test at production speeds and conditions — Once you’ve completed the design of your automated labeling system and labels, test them together at production speeds and conditions to ensure there are no surprises.

The stakes are higher in regulated and high-reliability environments

The reliability of an automated labeling system is key in any manufacturing operation, but especially so in regulated and high-reliability environments. In these scenarios, labeling failures aren’t just cosmetic, they can jeopardize your customers’ safety and put you at risk of noncompliance.

• Batch delays — faulty labels must be checked and/or reworked
• Validation complications — missing, misapplied, or illegible prevent validation
• Supply interruptions — incorrect or missing labels impede supply chain tracking
• Compliance risk — faulty or failed applications can go afoul of mandatory traceability and safety requirements

Is it time for you to talk to CleanMark?

We’re always happy to chat with you about labels, whether you’re ready to make an order or not. It’s our passion! But, there are some key times when we recommend reaching out so we can support your label needs.

If you’re doing or considering doing one of the following, schedule a consultation with us and we’ll walk you through the process.

• Transitioning from manual to semi-automated or automated labeling
• Designing or validating an automated labeling process
• Seeing intermittent issues in your automated labeling process

In the meantime, if you’re looking for some more info on how we design labels for automated labeling systems, visit our technical services page on label automation.

The post How automated labeling changes your label needs appeared first on CleanMarkLabels.

• The CleanMark LabelBuilder eliminates the guesswork of stock catalogs by letting you define labels around your actual process requirements.
• It converts real-world use cases into technical specs, ensuring your labels perform in demanding environments like cleanrooms, freezers, or sterilization cycles.
• The tool helps engineers, QC professionals, and purchasing agents align on a single set of requirements, reducing errors, rework, and wasted time.
• With guided selections, visual layer displays, and expert review, you can be confident your final label design will meet compliance and performance needs.

Don’t settle. Build something new.

It’s frustrating to know what type of label you need and not be able to find it in a stock catalog. Instead, you settle for what’s available and either adjust your processes or try to fit a square peg into a round hole. The result is rarely good. That’s why we created the CleanMark label builder.

It’s a powerful online tool that allows you to define the requirements for your custom labels quickly and clearly. The LabelBuilder centers your environment, your workflow, and your compliance needs, capturing your detailed technical and use requirements so our engineers can design a label that exceeds your expectations from day one.

What the CleanMark LabelBuilder does

The CleanMark LabelBuilder acts as both a checklist and a design conversation starter. It doesn’t expect you to know the technical name of every substrate or adhesive, but it does walk you through the critical decision points that determine whether a label succeeds or fails in your environment.

Simplify the decision-making process

Instead of overwhelming you with dozens of variables, the LabelBuilder organizes choices into logical categories.

Translate use cases into specifications

By prompting you to describe where and how a label will be used, the tool converts real-world conditions into technical requirements.

Bridge technical and purchasing needs

Engineers see their performance requirements reflected, QC teams see compliance considerations covered, and purchasing gets a clear specification for sourcing.

Streamline design and production

Every submission is reviewed by a CleanMark engineer, so you don’t have to worry about making a wrong selection — your inputs guide the conversation but don’t lock you in.

Why it’s valuable for engineers, QC, and purchasing

When choosing a new labeling solution, it can be tough to marry every stakeholder’s requirements. Using the LabelBuilder saves time, reduces errors, and ensures that all stakeholders get what they need:

Engineers

Translate process realities into label design via a structured process. Instead of hunting through vendor catalogs or testing off-the-shelf products that fail in extreme environments, define the actual demands of your processes — like sterilization cycles, cryogenic storage, or abrasive cleaning solvents — and get a solution engineered to handle them.

QC professionals

Align label design with compliance and audit requirements. Whether it’s maintaining sterility in cleanrooms, ensuring traceability through barcode readability, or validating indicator performance in sterilization, the LabelBuilder makes sure quality-critical details are documented up front.

Purchasing agents

Reduce costly misorders and rework by capturing specifications clearly before an order is placed. Instead of going back and forth between departments to clarify needs, purchasing can submit a LabelBuilder request knowing it reflects engineering and QC input. This leads to smoother procurement and predictable performance once labels arrive.

How to use the LabelBuilder

The LabelBuilder is designed to help you communicate your requirements in a structured way, without requiring you to be a label materials expert. Think of it as a guided conversation starter. Here’s how to get the most out of it:

1. Start with your critical needs

Begin by selecting the requirements that matter most for your environment. For example, if your labels must withstand autoclaving, cryogenic storage, or chemical exposure, check those boxes first. Building from your top priorities ensures the final solution is engineered around the conditions that can’t be compromised.

2. Move through each category

The tool is divided into three sections: material construction, special features, and configuration. Work through them step by step. Each selection helps narrow down the material and design choices that will work for your use case.

3. Pay attention to exclusions

If an option disappears in the LabelBuilder, it’s because you’ve selected another design option that excludes it. For example, because direct thermal printing relies on heat printing techniques, it can’t be paired with high heat resistance. This is why it works best to choose your highest priority options first.

4. Get extra context with info tips

Next to many fields you’ll see an information icon. Hovering over these icons will provide detailed explanations, including definitions, use cases, and potential trade-offs.

5. Leverage the visual layer display

As you make selections, the LabelBuilder shows a visual representation of every layer in the label construction — from application surface to adhesive to finish, including optional coatings. This makes it easy to understand how your label will be built and how each choice impacts performance.

6. Leave blanks if you’re unsure

If you’re not certain about a particular parameter, don’t worry. Just leave it blank. Our engineers will review your request and follow up to clarify. It’s better to provide accurate details about what you know — such as temperatures, surfaces, or regulatory constraints — than to guess on technical specifications.

7. Submit and collaborate

After you’ve made your selections, submit your quote request. A CleanMark engineer will review your inputs, confirm any open questions, and provide a tailored recommendation. We always provide samples so you can test on-site to ensure your labels function flawlessly in your unique processes.

Example LabelBuilder designs

Wondering what a semiconductor cleanroom lab label might look like? Or a fill and finish pharma label?  Take a look at these example LabelBuilder designs and then go make your own!

Easy-tear ISO 5 cleanroom label

Simpler is better. Especially when you’re avoiding contamination. These easy-tear cleanroom labels allow you to tear off exactly the number of labels you need and keep track of your trash with a brightly colored liner.

And, they feature high clarity and high black optical density for barcodes or QR code thermal printing inside a cleanroom (which conveniently requires no ribbon and no additional required cleanroom compatible consumables). Plus, they remove with no residue when you’re finished using them.

Material construction

• Finish: Matte
• Print level: Partially pre-printed
• Print technology: Direct thermal
• Permanence: Removable
• Liner: Synthetic (colors)

Special features

• Clean/aseptic: Cleanroom

Configuration

• Variable printing: QR code
• Perforation: Yes
• Label shape: Square/rectangle
• Label dimensions: 2” x 3”

Thermal transfer labels that can withstand the autoclave

Think thermal transfer labels can’t survive the autoclave? Think again. This label is designed for enhanced ink adhesion through the autoclave process so your thermal transfer printing and indicator ink stay intact during your product’s autoclave cleaning process.

It features a heat, chemical, and  moisture resistant baseline as well as a larger size for additional details and a large process indicator for quick visual inspection.

Material construction

• Finish: Matte
• Print level: Partially pre-printed
• Print technology: Thermal transfer
• Permanence: Permanent
• Liner: Synthetic (clear)

Configuration

• Perforation: Yes
• Roll core size: 3in
• Label shape: Square/rectangle
• Label dimensions: 2” x 1”

Cryo storage labels that stay put on small vials

Cryogenic storage puts label adhesives to the test! This label is designed specifically to stay permanently adhered in ultra-low temperatures — even around tight curves like vials or syringes. It’s thermal printable with durable ribbon for temperature resistance and can be auto applied.

Material construction

• Finish: Matte
• Print level: Partially pre-printed
• Print technology: Thermal transfer
• Permanence: Permanent
• Liner: Synthetic (clear)
• Core: Paper

Special features

• Durability: Cryogenic

Configuration

• Perforation: No
• Application surface: Glass
• Application surface shape: Curved
• Roll core size: 3in
• Label shape: Square/rectangle
• Label dimensions: 2.5” x .5”

Next steps to custom label success

The LabelBuilder is not the final word on your label design — it’s the starting point. Once you submit your requirements, CleanMark’s team reviews them with you, validates assumptions, and provides prototypes or production samples. The result is a label solution tuned to your exact environment, whether that’s a semiconductor fab, biotech cleanroom, or food manufacturing line.

The post Harness the power of the CleanMark LabelBuilder appeared first on CleanMarkLabels.

• The Food Traceability Rule is scheduled to come into effect on January 20, 2026.
• The FTR, under the  Food Safety Modernization Act (FSMA), introduces new traceability requirements for certain types of food.
• Companies producing products covered under the FTR must track Key data elements (KDEs) at all Critical Tracking Events (CTEs).
• These companies must also have a traceability plan that outlines their procedures for capturing and storing KDEs.
• FTR-optimized labels are a key tool to maintain compliance and increase efficiency under the new regulations.

The Food Traceability Rule is almost here. Are you ready?

On January 20, 2026, the Food Traceability Rule is scheduled to come into effect under the Food Safety Modernization Act (FSMA). These new requirements by the FDA increase the complexity of food tracing and require precise labeling to maintain compliance.

What does this mean for you? For many companies, it means labels will have to be rethought prior to the new year. An experienced labeling partner who can engineer custom labels specifically for new FTR requirements is the key to keeping your supply and processing operations running smoothly and within regulations.

The CleanMark team is standing by to help, but in the meantime, here are some actionable tips for determining how the FTR applies to you and what you need to do to achieve labeling compliance before the deadline.

1. Does the FTR apply to me?

The FTR doesn’t apply to every single food product. Only products listed on the FDA’s food traceability list (or products made with those ingredients in their listed forms) must comply with the FTR.  Here’s the list as published in March 2025. You can access the full, most current list here.

• Cheese (made from pasteurized milk), fresh soft or soft unripened
• Cheese (made from pasteurized milk), soft ripened or semi-soft
• Cheese (made from unpasteurized milk), other than hard cheese
• Shell eggs
• Nut butters
• Cucumbers (fresh)
• Herbs (fresh)
• Leafy greens (fresh)
• Leafy greens (fresh-cut)
• Melons (fresh)
• Peppers (fresh)
• Sprouts (fresh)
• Tomatoes (fresh)
• Tropical tree fruits (fresh)
• Fruits (fresh-cut)
• Vegetables (fresh-cut)
• Finfish, histamine-producing species (fresh, frozen, and previously frozen)
• Finfish, species potentially contaminated with ciguatoxin (fresh, frozen, and previously frozen)
• Finfish, species not associated with histamine or ciguatoxin (fresh, frozen, and previously frozen)
• Smoked finfish (refrigerated, frozen, and previously frozen)
• Crustaceans (fresh, frozen, and previously frozen)
• Molluscan shellfish, bivalves (fresh, frozen, and previously frozen)
• Ready-to-eat deli salads (refrigerated)

Even if you produce one of the foods on the food traceability list, you’ll also want to check out this handy exemption questionnaire to determine if another aspect of your business may exempt you from following FTR requirements.

2. What do I have to track and when?

The FTR focuses on two key elements:

• Critical tracking events (CTEs)
• Key data elements (KDEs)

Critical tracking events are points in the supply and production process that require traceability information to be collected. Harvesting and shipping, for example, are both CTEs.

Key data elements are the specific types of data you’re required to collect They’re tied to specific CTEs. You can access the full list of KDEs along with additional details here.

What is a traceability lot code (TLC)?

The FDA defines the TLC as a “descriptor, often alphanumeric, used to uniquely identify a traceability lot within the records of the firm that assigned the traceability lot code.” In other words, it’s the identifier that stays with the lot throughout its lifecycle.

According to the FDA, TLCs must be assigned when the food is

• initially packed (for raw agricultural commodities not obtained from a fishing vessel)
• received by the first land-based receiver (for food obtained from a fishing vessel)
• Transformed

Dig deeper >> FDA Traceability Lot Code webpage

What’s a traceability plan and how do I make one?

Your Traceability Plan (TP) should outline  your food tracing procedures, how you assign TLCs, a point of contact, and other details depending on your industry. Full details are outlined in section 1.1315 of the FTR. You can also find examples of industry-specific traceability plans on the FTR website.

How do I optimize my labeling procedures for FTR compliance?

Labels are a key tool for capturing KDEs and communicating that information into your traceability records as outlined in your traceability plan (more on that below). Working with a labeling partner, like CleanMark, who has experience designing labels for high-throughput operations in harsh environments is the best way to ensure compliance and speed production.

Extreme durability

Tracking labels are only as good as they are durable. If they fall off or become illegible, you’re out of compliance and risk both customer safety and big government fines. CleanMark’s durable labels are designed to withstand extreme temperatures, moisture, and chemical exposure while staying clearly readable and firmly adhered.

Printing flexibility

Choosing labels that are preprinted with static information, like logos and handling instructions, but are also optimized for on-site printing delivers both speed and accuracy — key for maintaining efficiency and compliance.

Variable printing

Pre-printing known variable information, like TLCs,  is another time saver. The key is to work with a labeling partner who can guide you to the most efficient combination of factory and on-site printing to meet your compliance and operational needs while keeping your processes moving smoothly.

Take the stress out of FTR labeling

It’s good to have a general idea of what you’re looking for in an FTR-compliant label, but honestly, you have higher priorities — like running your business!

CleanMark’s engineering team takes the stress out of adjusting for the FTR, or any other regulation for that matter. We look at all the details, learn about your unique processes and environment, and then design a label that performs.

Schedule a consultation to learn more, or take our LabelBuilder for a spin to see what’s possible!

Resources

• FSMA Final Rule on Requirements for Additional Traceability Records for Certain Foods
• § 1.1315 What traceability plan must I have for foods on the Food Traceability List that I manufacture, process, pack, or hold?
• US FDA: Traceability Lot Code
• Food Traceability Rule: Critical Tracking Events (CTEs) and Key Data Elements (KDEs)
• Exemptions to the Food Traceability Rule
• The FDA Food Traceability Rule At-A-Glance
• Food Safety Modernization Act (FSMA)

The post What does the Food Traceability Rule mean for your labeling procedures?  appeared first on CleanMarkLabels.

The advent of the cleanroom label

Today, CleanMark is the leader in cleanroom-compatible labels. But when CleanMark first encountered a need for clean labeling technology at Siltec in the 90s, cleanroom-specific labels weren’t being marketed.

Siltec needed labels that wouldn’t contaminate their sensitive cleanrooms by shedding particles — something no one else had been able to provide them. CleanMark responded by engineering a label from synthetic materials, packaged in a way that preserved cleanliness throughout production and handling. From the adhesive to the liner to the packaging process, everything had to be reimagined — and our team was primed with the practical and material know-how to think outside the box.

The cleanroom label we developed for Siltec changed how semiconductor, pharmaceutical, and medical-device manufacturers approach labeling in sensitive environments, and we continue to advance and perfect our cleanroom labels today to meet the most stringent cleanroom parameters.

Material science as a competitive edge

CleanMark’s ability to solve problems at the material level has become our defining strength. From cryogenic storage to extreme heat environments, our engineers choose — or develop — components that are uniquely tailored to our customers’ environments and procedures.

From tiny, self-extinguishing information labels for PCMCIA cards to new insert-molding processes for chemical-resistant auto component labels, our team has proven that decades of real-world experience paired with deep technical understanding is an unstoppable combination.

Whether it’s cleanroom environments, cryogenic storage, or high-heat applications, CleanMark’s process is consistent: ask the right questions, evaluate every layer of the material construction, and test rigorously. Time and again, this has revealed hidden factors others missed — like how gating configurations in a mold can cause label ink to lift, or how packaging methods can introduce particulate contamination in clean environments.

When customers tell us other suppliers have said, “It can’t be done,” CleanMark steps in with a different answer:  “Let’s make it happen.”

The CleanMark commitment

Today, CleanMark continues to partner with leading manufacturers in semiconductors, pharmaceuticals, medical-devices, automotive, and more.

We aren’t in the business of selling labels. We’re in the business of solving labeling challenges that others walk away from. Customers don’t come to CleanMark for a cookie-cutter label. They come with a challenge and leave with a solution. That’s our CleanMark commitment.

The post CleanMark Labels: 40 years solving the impossible appeared first on CleanMarkLabels.

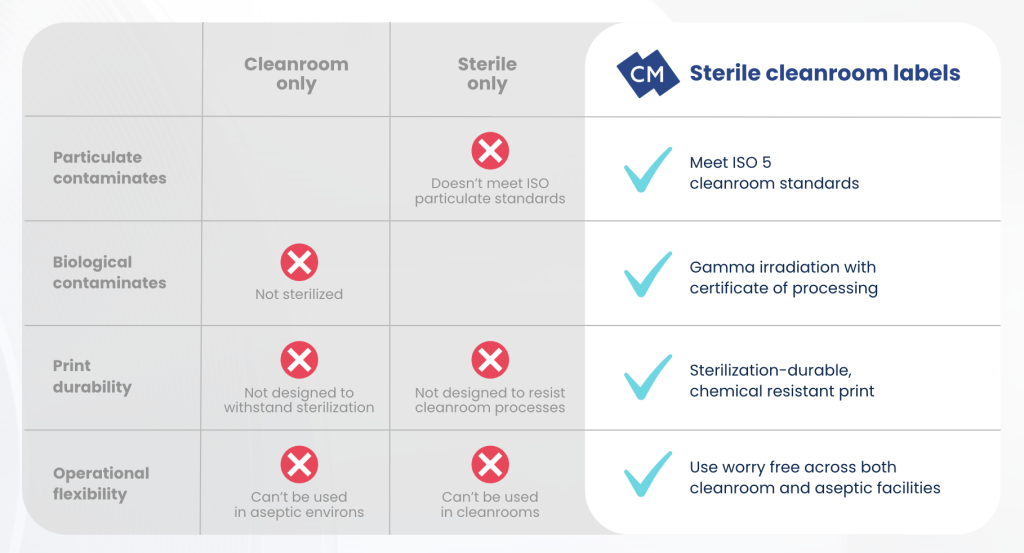

• Hybrid cleanroom-sterile lab labels meet both cleanroom and sterility standards, eliminating the need for high-risk, high-cost workarounds.
• They have the highest impact in critical environments like fill/finish, cryogenic storage, and sterile device assembly.
• Cleanroom-sterile lab labels are engineered for durability after sterilization, chemical exposure, and extreme temperatures.
• They reduce compliance risk with full traceability, sterility validation, and cleanroom compatibility.

High-tech fields like medical device manufacturing and pharma depend on aseptic areas and cleanrooms that are built for precision, but many still rely on lab labels that fall short. Sterile labels may contaminate cleanrooms and cleanroom labels, even if sterilized in-house, underperform and increase regulatory burden on technicians. The result is higher risk, slower workflows, and more complicated audits.

The fix lies in dual-purpose cleanroom-sterile labels that function in all of your sensitive operational facilities. Read on to learn how and why.

Characteristics of cleanroom-sterile dual-purpose laboratory labels

Hybrid cleanroom-sterile lab labels meet the parameters for both cleanroom compatibility and aseptic standards.

• Low-particulate, low-outgassing construction
• Sterilized via validated process (gamma, EtO, or autoclave) to meet SAL requirements
• Packaged and handled to preserve both cleanliness and sterility
• Tested for post-process sterilization adhesive and print performance

Where are dual-purpose cleanroom-sterile lab labels most impactful?

Laboratory labels that are both cleanroom compatible and sterile boost efficiency in any manufacturing or research setting where products move through aseptic and cleanroom environments. Here are just a few examples where dual-purpose cleanroom-sterile lab labels could drastically reduce risk and increase productivity.

Pharmaceutical or biologic fill and finish lines

Sterile fill/finish lines represent some of the most tightly controlled environments in pharmaceutical and biologic manufacturing. These ISO 5 (Class 100) or Grade A zones where sterile drug products are dispensed into final containers — vials, syringes, or cartridges — before sealing and packaging are particularly fragile. At this stage, even the smallest source of contamination can jeopardize product integrity, delay release, or trigger a costly batch rejection.

✗ Cleanroom-only lab labels

Cleanroom-only labels are typically particulate-controlled and suitable for ISO environments, but they are not sterilized and cannot be introduced into aseptic fill zones without additional validated processing.

✗  Sterile-only lab labels

Sterile-only lab labels may meet SAL standards but fail to meet particulate or static controls necessary for direct use in ISO 5 airflow or Grade A laminar hoods.

Hybrid cleanroom + sterile lab labels

Pre-sterilized lab labels that are also processed in an ISO-classified cleanroom environment close this critical gap:

• They won’t shed particles, interfere with airflow, or contribute to electrostatic buildup in fill/finish isolators or RABS systems.
• They arrive with validated sterilization processes, COPs, batch-level traceability, and appropriate packaging.
• Adhesives and substrates are engineered for post-sterilization and chemical durability, maintaining adhesion, legibility, and print fidelity even after exposure to sterilization and cleanroom cleaning agents.

Biologics sample and cryopreservation workflows

Biologic therapies demand precise, sterile sample handling at every stage, including cryogenic storage. In these workflows, lab labels aren’t just identifiers. They are critical tools for maintaining traceability through temperature extremes, aseptic handling steps, and cleanroom transfer protocols.

Laboratory labels used in these applications must withstand extreme conditions: liquid nitrogen exposure, thaw cycles, surface disinfection, and sterile barrier handling — all without compromising adhesion, legibility, or particulate control.

✗ Cleanroom-only lab labels

Cleanroom-grade laboratory labels perform well in ISO-classified environments, but they are not sterilized and cannot be confidently used on primary containers holding sterile biologics or intermediates. Also, their adhesives and face stocks may fail when exposed to cryogenic conditions or disinfectants.

✗  Sterile-only lab labels

Sterile-only lab labels pass SAL requirements, but if they are not processed in a cleanroom, they risk introducing particulates or static discharge — particularly problematic when labeling cryovials, bioprocessing bags, or samples in ISO 5 transfer hoods or isolators. And, most are not validated for adhesion at cryogenic temperatures.

Hybrid cleanroom + sterile lab labels

Dual cleanroom-compatible and sterile-certified laboratory labels are purpose-built for biologics workflows:

• They are processed in ISO-classified cleanrooms to prevent particulate shedding and electrostatic interference during handling.
• They are sterilized via validated processes and packaged for aseptic transfer with full traceability.
• Materials can be validated for cryogenic performance, adhering securely at -80°C or lower, maintaining legibility post-thaw, and resisting degradation from ethanol, IPA, or hydrogen peroxide-based cleanroom agents.
• They integrate seamlessly across storage, transfer, and aseptic re-entry workflows, minimizing relabeling or revalidation needs.

Medical device assembly

In medical device manufacturing, labeling often occurs during or immediately after final assembly, frequently within cleanroom or aseptic environments. Components like implantable devices, surgical kits, or diagnostic cartridges may be assembled in ISO cleanrooms, then packaged for terminal sterilization or inserted into pre-sterilized barrier packaging. At this stage, labeling is tightly regulated and must support both product integrity and compliance documentation.

Any label failure — whether particulate or sterility-related — can threaten product release, disrupt audits, or trigger recalls.

✗ Cleanroom-only lab labels

While these laboratory labels are designed for cleanroom compatibility, they do not meet sterility requirements. Applying a cleanroom-only label inside a sterile barrier package or on a product destined for terminal sterilization introduces validation gaps and contamination risk.

✗  Sterile-only lab labels

Sterile-only lab labels are not processed in ISO-controlled environments. That means they may not meet particulate or outgassing standards required for cleanroom use. They also may not withstand material stress from sterilization cycles.

 Hybrid cleanroom + sterile lab labels

Laboratory labels that are both cleanroom-processed and pre-sterilized bridge the operational and regulatory demands of device assembly:

• Processed in ISO-classified cleanrooms to prevent particulate shedding, ensuring compatibility with regulated cleanroom environments.
• Sterilized using validated methods with complete documentation and lot-level traceability to support device history records (DHR).
• Engineered to withstand sterilization methods without adhesive degradation, curling, or print distortion.
• Can be chemically resilient to standard cleanroom disinfectants such as IPA, bleach, or hydrogen peroxide vapor, ensuring print and adhesive integrity throughout post-assembly handling.

Key questions for your dual cleanroom-sterile lab label provider

Once you’re ready to make the switch to dual-purpose cleanroom-sterile laboratory labels, you’ll want to ask potential suppliers some key questions:

Has the product been tested for both particle and sterility standards?

Look for lab labels processed in an ISO-classified cleanroom and sterilized using a validated method like gamma irradiation. Suppliers should be able to provide particulate testing data and sterility assurance documentation.

What sterilization method is used?

Ask whether sterilization is performed in-house or through a validated partner and what method is used. The supplier should provide a certificate of processing.

Is post-sterilization print and adhesive performance validated?

Not all label materials survive sterilization intact. Ensure the supplier has tested adhesive bonding, label integrity, and print durability after exposure to sterilization conditions (e.g., temperature, humidity, radiation) and chemical resistance to typical post-process cleaning agents like IPA or hydrogen peroxide.

How is sterility preserved during packaging and transport?

Laboratory labels should be sealed in sterilization-validated packaging. Ask about expiration dates and shipping and handling procedures.

By asking these questions up front, your procurement team can ensure that laboratory labels won’t become a bottleneck — or a liability — during production, release, or audit. A strategic lab label supplier should offer more than labels. They should offer quality assurance.

CleanMark sterile cleanroom lab labels solve your operational challenges

CleanMark has a 40-year history supporting some of the most sensitive operations in the pharmaceutical, life science, and healthcare industries and has a spotless track record with our sterile and cleanroom labels. Our custom-engineered approach to lab labels means you get exactly the label you need for your unique processes, and our commitment to quality means you never have to worry about particulate or biological contamination.

Schedule a consultation to get started, or connect with one of our lab label experts now via chat. We look forward to supporting your labeling needs.

The post Optimizing lab labels for high-performance aseptic operations: hybrid sterile + cleanroom-compatible labels appeared first on CleanMarkLabels.

• Sterilizing syringe labels in house may seem efficient, but it introduces major risks: adhesive breakdown, print distortion, contamination, and regulatory non-compliance.
• Maintaining sterility is difficult without validated packaging, sterilization indicators, and tightly controlled handling procedures.
• In-house methods strain technician time, delay batch prep, and increase QA workload.
• Pre-sterilized syringe labels eliminate these risks by arriving ready-to-use, with validated sterility and reliable print and adhesive performance.
• For teams focused on compliance, throughput, and patient safety, pre-sterilized labels are the safer and more efficient choice.

Sterile syringe labels are essential, but which method is best?

When contamination is the biggest threat to your company’s success, it makes sense that every single component that enters your aseptic and clean environments should be carefully vetted — even something as small as a syringe label. Yet many sterile manufacturing and compounding companies still rely on in-house sterilization methods to prepare labels for use in aseptic and clean spaces.

At first glance, sterilizing syringe labels internally might seem like a practical workaround. In reality, it introduces significant risks. Adhesives and inks can degrade, sterile outcomes are inconsistent, and the burden of process validation consumes your team’s time and energy.

Pre-sterilized syringe labels reduce risk and keep your team’s focus where it should be — on your product. In healthcare, medical device, and pharmaceutical industries where compliance, safety, and efficiency matter, the difference isn’t just technical. It’s strategic.

Where syringe labels fail — and what it costs you

Syringe labels are a small, but essential, component. And unfortunately, they’re prone to failure. The tightly curved surface of a syringe makes edge lift more likely. Moisture, extreme temperatures, and chemical exposure all put adhesives to the test. And, sterilization or surface cleaning can smear and smudge printing.

Any or all of these failures can create uncertainty about product identity, dosage, or expiration, leading to delays, rework, discarded batches, or even worse, risks to patient safety. In other words, a faulty label isn’t just cosmetic. It’s a fundamental threat to the success of your product.

The risks of in-house label sterilization

It’s not surprising that many companies are tempted to bring syringe-label sterilization in house. On the surface, making label sterilization part of in-house operations seems like it could reduce costs and increase efficiency. But it doesn’t. Here’s why.

Adhesive degradation

Adhesive degradation is a primary concern. Many commercial label adhesives are not formulated to withstand sterilization temperatures, humidity, or radiation. Even if labels appear to adhere at first, edge lift, bubbling, or full detachment can occur days later, especially under refrigerated or high-humidity conditions common in sterile workflows. Poor adhesion compromises both identification and sterility. Once a label lifts, it can trap contaminants or shed particles directly into the cleanroom environment.

Risks

• Adhesive softening or breakdown under sterilization conditions
• Edge lift or flagging during cool-down or freezer storage
• Bubbling from trapped moisture or off-gassing
• Total label detachment during application or transport
• Residue transfer that interferes with container integrity

Consequences

• Loss of product identity
• Incomplete or missing compliance information
• Surface contamination and particle shedding
• Rejected batches or delayed release due to relabeling or reinspection

Print distortion

Print distortion is another possible failure point. Direct thermal print, for example, can smear or ghost under heat and pressure. Paper labels may fade or disintegrate entirely, especially in moist or high-humidity cycles. Even synthetic label stocks can experience legibility loss during autoclaving, EtO, or gamma sterilization if not coated or laminated properly.

Faded or illegible labels introduce the risk of misidentification or lost traceability, especially in high-stakes applications like narcotics, biologics, or patient-specific doses.

Risks

• Smearing, blurring, or fading of ink
• Label breakdown that reduces or destroys legibility
• Curling or lifting that distorts print

Consequences

• Inability to verify drug identity, dose, or expiration
• Loss of critical patient or batch tracking information
• Regulatory citations for illegible or missing label content
• Delays, rework, or disposal of products
• Increased risk of medication errors in clinical settings

Contamination

Achieving and maintaining sterility is difficult. Without a validated, closed-loop process — including packaging designed for sterilization, sterilization process indicators, and post-process integrity checks — there is no way to confirm a label is truly sterile at point-of-use. Even if bioburden is reduced in the chamber, post-process handling during transfer and storage peeling can reintroduce contamination.

Risks

• Contamination during transfer
• Packaging failure
• Ambient air exposure
• Glove contact or mishandling

Consequences

• Loss of sterility assurance
• Batch rejection or recall
• Regulatory non-compliance
• Increased risk to patient safety

Non-compliance

The regulatory burden of in-house sterilization of syringe labels is significant and often includes:

• Bioburden testing on label lots
• Dose mapping and exposure validation
• Packaging integrity testing
• Ongoing process controls and revalidation after any change to materials, cycle, or equipment

Few facilities — especially at the hospital or small-batch scale — have the resources to maintain this level of documentation and quality control.

Risks

• Incomplete or missing validation documentation
• Failure to meet sterility assurance level (SAL) requirements
• Unmonitored changes to label stock or sterilization conditions
• Use of packaging materials not validated for sterilization
• Inconsistent or undocumented reprocessing practices

Consequences

• FDA 483 observations or warning letters for inadequate material control
• Delays or rejections during audits and inspections
• Increased QA burden and resource strain
• Loss of product release confidence and regulatory trust
• Potential liability if a contamination event is traced to labeling

Operational inefficiency

In-house sterilization of syringe labels consumes technician time, delays batch prep, and introduces multiple points for error. It’s not just about whether the label survives the sterilization cycle. It’s about whether it maintains functional sterility and legibility under real-world handling conditions.

Risks

• Extended prep time due to pre-sterilization labeling logistics
• Batch delays caused by sterilization equipment bottlenecks
• Increased manual handling steps and handoffs
• Resource drain on QA/QC staff for reinspection or troubleshooting
• Repeated relabeling or label replacement due to post-cycle failures

Consequences

• Slower overall batch turnaround times
• Reduced technician availability for critical compounding tasks
• Increased labor costs per unit due to workflow inefficiencies
• Production scheduling disruptions in high-throughput environments
• Lower operational capacity and throughput over time

When all these factors are taken into account, in-house label sterilization is rarely the smart choice it appears to be. It shifts the burden of validation and sterility assurance from the supplier, who is equipped to manage it, onto internal teams who often aren’t. The result is higher risk and lower efficiency in your operations.

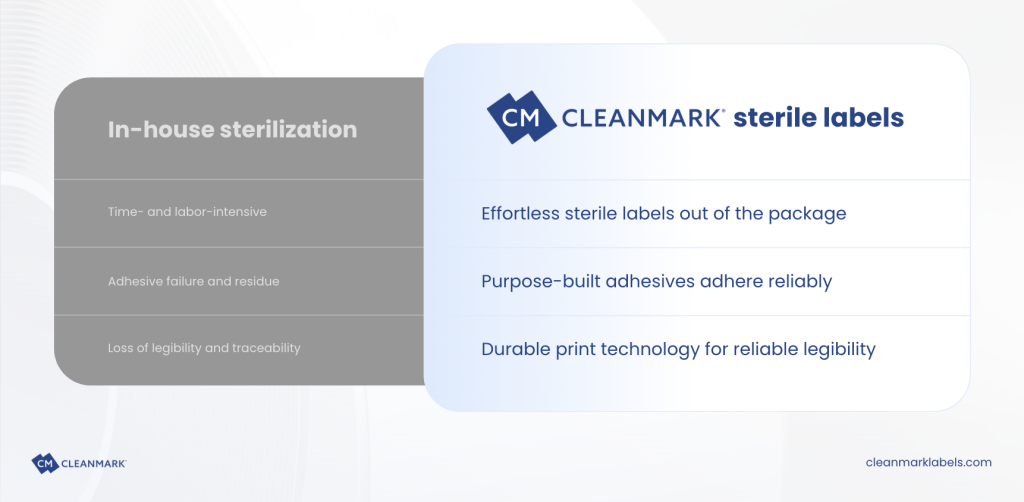

Why pre-sterilized syringe labels are safer and smarter

If you’re put off by the many risks above, pre-sterilized syringe labels offer a streamlined, validated alternative that reduces risk and improves efficiency across aseptic operations.

Pre-sterilized syringe labels, like CleanMark’s, arrive ready to use, with documented sterility and full traceability. Our sterile labels for syringes are manufactured under controlled conditions and sterilized using validated processes, typically gamma irradiation. This eliminates the need for internal validation and reduces QA burden while aligning cleanly with GMP and USP <797> expectations.

Because they are specifically engineered for sterilization, CleanMark sterile labels maintain their physical integrity and print performance post-sterilization in real-world use. Our custom syringe label adhesives are designed to adhere reliably to tight curves, withstand extreme temperatures during sterilization and storage/shipping, and are resistant to alcohol and chemical wipes. And, our packaging and shipping process preserves sterility during handling and storage.

Operationally, CleanMark sterile syringe labels remove multiple risk variables from the production process. With our pre-sterilized labels, there’s no need to wait on sterilizer availability, no technician time lost to prepping and validating label sterilization cycles, and no second-guessing whether a label is sterile or will stay adhered under real-world conditions.

When you do the math, the simplicity and reliability of pre-sterilized labels make them not just the safer option, but also the most efficient operationally.

Order your CleanMark sterile syringe labels now

Whether you know exactly what you need or could use some support from our engineering team to design the perfect custom syringe label for you, we’re here to help. Schedule a consultation or chat with one of our legal experts now (icon to your left) to get started!

The post Pre-sterilized syringe labels: a smarter solution for aseptic operations appeared first on CleanMarkLabels.

Great ideas for manufacturing improvement come from people in all sorts of roles: quality leaders, operations manager, procurement specialists, all the way up to executive leaders. The sticking point is that many of these people haven’t ever been called to lead the change management process before.  And, if you don’t have experience building internal consensus, you’re going to have trouble getting your great improvement idea across the finish line.

We hear these kind of complaints all the time from customers working their way through internal approval processes:

• “It should be simple, but we’re stuck in analysis paralysis.”
• “Every department has a say, but nobody is driving decisions forward.”
• “We keep revisiting decisions without moving forward.”

This 5-step guide to taming the change management process gives you concrete, no-nonsense guidance for taking your idea from conception to implementation by building strong internal consensus. Let’s get to the nitty gritty!

Step 1: Identify and strategically engage stakeholders

A successful change management process always involves identifying key stakeholders and engaging them strategically at the right moments. Here are some questions to ask yourself when you’re identifying stakeholders?

• Who will make the final decision?
• Who will advise the decision maker(s)?
• Who is impacted by the current problem?
• Who will benefit from the proposed change?
• Who has veto power?

As you look for these people, keep in mind that the change management process often involves stakeholders from across the company, not just in your department. You’ll want to consider that your stakeholders could be in quality assurance, operations, procurement, regulatory affairs, engineering and R&D, or executive leadership.

And, each stakeholder’s role, both in the organization and in the change management process, affects when and how you should talk to them. You’ll want to think about their context in the company, when they’ll likely play the largest role in the process, and what information they might find most compelling.

Initiating one-on-one conversations with key stakeholders before group discussions to privately address concerns, build rapport, and identify potential support or resistance. And, it puts you in the strongest position to provide everyone with information tailored to their unique concerns at the right time in the process.

Step 2: Clearly define the problem and solution

Clarity and detail are essential elements of a successful change management process. Initiatives commonly fail because the problem and/or solution is perceived differently by each stakeholder or simply misunderstood. So how do you avoid that issue? With concrete, detailed explanations that address shared concerns and goals.

First, avoid broad, vague statements:

 “Our labeling system isn’t reliable.”

Instead, choose details that define the concrete parameters of the problem and its impact:

“Our team spends significant time correcting labeling errors, resulting in increased regulatory compliance risks and delaying critical production schedules by up to 15%.”

And set clear expectations for the benefits of your proposed solution:

“CleanMark labels are customized for our label applicator machine and production environment, so they will apply and adhere reliably, reducing compliance risk and eliminating production delays due to labeling errors.”

Quantifiable details (like additional cost or production delays) are objective indicators that all teams can rely on to make strong decisions. When you’re choosing which data points to include in your description of the problem and solution, make sure to include information that speaks to all departments that will be part of the final decision. Here are a few to consider:

• Regulatory compliance and audit readiness
• Operational efficiency
• Product quality and integrity
• Cost control and resource optimization
• Competitive advantage and market responsiveness

Step 3: Anticipate and address objections proactively

No one ever made their best case for change while caught off guard. Be proactive about objection response. Put yourself in the shoes of the stakeholders you identified in Step 1. What might they be concerned about? Why? What evidence can you provide to put their minds at ease? And then make sure you have answers — and the documentation to back them up — at the ready.

Here are some examples:

Notice that in each of these responses, there’s an offer for detailed information to back up the claim that your proposed change will improve the situation from their specific point of view. And remember, relying on concrete, robust data and thorough documentation ( rather than subjective opinions) strengthens your position significantly.

Step 4: Guide the decision-making process

An effective change management process isn’t just about presenting solutions — it involves guiding teams toward collective, well-informed decisions. That means not just providing information, but facilitating productive conversation and ultimately building consensus.

Here are some approaches many our our customers have found effective:

Comparative analysis matrices

Comparative analysis matrices are valuable tools for clearly outlining and contrasting the current versus proposed scenarios. These matrices help stakeholders visually understand the benefits, risks, costs, and trade-offs associated with each option, enabling more informed, objective decision-making.

Risk-benefit summaries

Risk-benefit summaries provide concise, clear documentation highlighting the potential impacts, opportunities, and consequences of each proposed change. These summaries focus on actionable data, allowing stakeholders to easily assess and balance potential benefits against any identified risks, ensuring transparent and informed decision-making.

Interactive Q&A sessions

Interactive question-and-answer sessions directly engage stakeholders, providing a platform for open dialogue, addressing concerns, and clarifying uncertainties. These sessions help build alignment, reduce misconceptions, and strengthen commitment to the agreed-upon solution by actively involving stakeholders in the decision-making process.

Implementation pilots

Conducting controlled tests or trial runs of the proposed changes provides practical, real-world evidence of effectiveness, enabling stakeholders to validate outcomes and build confidence in broader implementation plans. This approach helps manage risk, demonstrate feasibility, and secure broader organizational buy-in.

Remember, the objective of the change management process is to build clarity, mitigate risks, and secure unified commitment across all stakeholders.

Step 5: Document decisions and ensure follow-up

Effective change management includes maintaining clear documentation, following up on commitments promptly, and ensuring accountability so that decisions lead to tangible actions.

After any meetings, group or individual, send clear follow-up communications detailing:

• Confirmed actions and next steps
• Assigned responsibilities and owners
• Specific timelines and milestones
• Resources and support required from each department

Regular follow-up sessions reinforce accountability, demonstrate progress, prevent stagnation, and maintain momentum.

Need support implementing your change management process?
CleanMark specializes in helping manufacturing leaders implement custom labeling solutions through structured, proven change management processes. We support our customers from solution design to internal approval, implementation, and beyond.

Ready to get your great labeling idea across the finish line? Schedule a consultation with us and one of our team members will walk you through our comprehensive support.

The post 5 steps to tame the change management process appeared first on CleanMarkLabels.

Read on to learn why your process improvement is going off the rails and how to get on the fast track to implementing your smartest initiatives.

Misalignment kills manufacturing process improvement

You’ve identified a smarter way to do things. Maybe that’s an upgrade to traceability protocols, a new label material, or a new sterilization protocol. On paper, it’s a no-brainer. But moving from proposal to implementation is rarely that simple.

In many regulated manufacturing environments (like BioTech and pharma), process improvement isn’t blocked by technical flaws. It’s blocked by internal friction and misunderstandings.

• Siloed priorities — Manufacturing operations cares about efficiency. QA focuses on compliance. Procurement is driven by cost. Without shared priorities, even simple changes can trigger misalignment.
• Information gaps — Leadership may only see the top-line cost. Engineering may not see the compliance benefit. When team leaders are making decisions based on incomplete information, the easiest answer is no.
• Regulatory caution — Even minor changes can raise concerns about revalidation or audit exposure. Without clear documentation, teams often default to the status quo.
• Unclear ownership — Who’s responsible for pushing an improvement through? In many companies, process improvement is everyone’s job — which often means it’s no one’s job.


When these blockers are present, even the most promising manufacturing process improvement can sit idle. But there are ways to clear the path.

We help you build a case for process improvement that your entire organization can support

Companies that successfully implement manufacturing process improvements have a clear approach to internal alignment. And when it comes to CleanMark’s customers, we’re a big part of their plan.

We’ve worked with manufacturers across BioTech, pharma, semiconductors, and other highly regulated sectors to design and implement new labeling solutions that improve the efficiency and effectiveness of their manufacturing processes. And we understand that driving process improvements isn’t just about finding the right solution — it’s about building the case in a way your entire organization can support.

Here’s how we help our customers gain consensus around manufacturing process improvements:

Technical data that answers stakeholder questions before they’re asked

We provide the kind of evidence your team needs to feel confident — validation summaries, durability test results, application guidance, and more.

Tailored communications for every stakeholder group

Need a compliance summary for QA? A cost-benefit breakdown for procurement? A change impact outline for operations? We help you tell the story in the right language for each decision-maker.

Support for internal conversations and team presentations

We’ve supported dozens of process improvement initiatives through the internal review process. We’ll join calls, present findings, or help clarify technical concerns — whatever helps keep your project moving forward.

Case study — cryogenic labels

Let’s take a look at a real-world example to see what our support can look like in action.

The challenge

A packaging engineer at a global biotech company needed to improve labeling for cryogenic vials — a high-risk process with tight compliance requirements. CleanMark identified the right solution quickly, but getting it approved required a complex internal approval process.

The engineer faced questions from QA about long-term adhesion, skepticism from procurement about switching vendors, and requests from regulatory for validation data. He feared the improvement process was stalled for good.

The CleanMark solution

We understand that approval processes are complex because each stakeholder has unique insight into potential impacts — both positive and negative — that a process change could have on overall operations. We respect that, and we set out not to side-step internal checks, but rather to support our customers as they move through them to feel confident that implementing our solution will be a win for the company.

In this case, we provided use-case-specific adhesion test results at cryogenic temperatures and co-created a compliance brief that mapped directly to QA and regulatory concerns. We also joined a call with procurement to explain technical requirements and lifecycle cost savings.

The result? Approval in just two weeks — and the new labeling system was validated and in place by the end of the month.

Case studies >> Learn more about how we’ve helped customers succeed

Ready to see your manufacturing process improvements in action?

Let’s be honest: pushing for process improvements can be lonely.  We’re here to make it easier to  be the one who moves things forward. We know you’re not just trying to solve a problem. You’re trying to create a more reliable process. A more compliant operation. A smarter way of working. That only happens when people say yes. And we can help you get there.

Let’s talk. CleanMark is here to support you not just with custom labels — but with the clarity and coordination needed to bring real improvements to life. Schedule a consultation here.

The post Need help getting your manufacturing process improvement across the finish line? appeared first on CleanMarkLabels.
